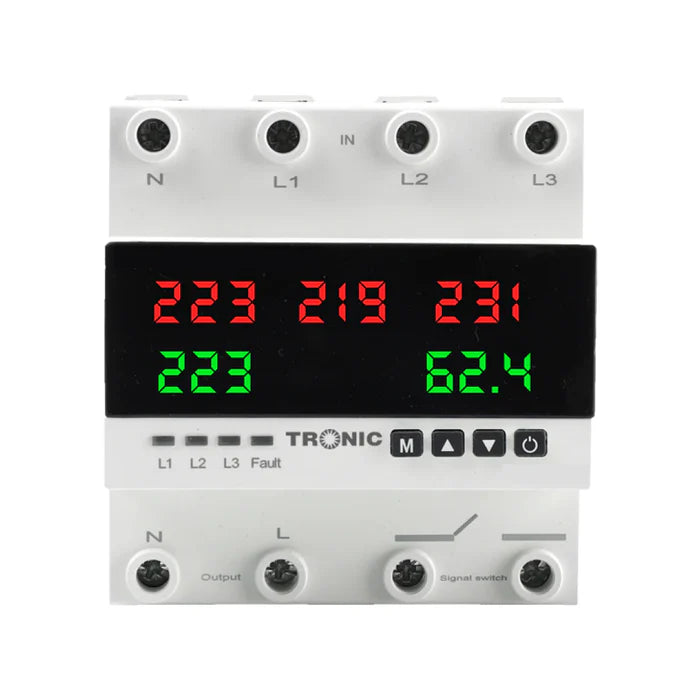

Automatic Phase Selector – 100A, 3-Phase + Neutral, Digital Control (CO APS5-100)

The Tronic CO APS5-100 Automatic Phase Selector is a smart changeover switch designed to ensure stable power supply in 3-phase systems by automatically selecting the best available phase based on user-defined voltage thresholds. It features a digital LCD display, customizable settings, and protection against overvoltage, under voltage, and overcurrent. This DIN-rail mounted device is ideal for residential, commercial, and light industrial setups that require seamless and reliable power transfer between phases.

Technical Parameters:

• Model: CO APS5-100
• Operating Voltage: AC 220–240V, 50Hz
• Rated Current: 100A Max (adjustable from 1–100A)
• Pole Configuration: 3 Phase + Neutral
• Surge Protection: 1.8kV
• Overvoltage Protection Range: 230–300V (Default: 270V)
• Undervoltage Protection Range: 140–220V (Default: 170V)
• Power-On Delay Time: 1–600 seconds (Default: 5s)
• Protection Recovery Delay: 1–600 seconds (Default: 5s)
• Overcurrent Action Time: 0.1–10 seconds (Default: 0.5s)
• Voltage Accuracy: <1%
• Max Operating Phase Voltage: 350V
• Switch Delay to Reserve Phase: ≤2 seconds
• Display Type: Digital LCD
• Mounting Type: DIN Rail
• Product Dimensions: 90mm (W) × 95mm (H) × 66mm (D)
• Operating Temperature: –10°C to +50°C
• Storage Temperature: –25°C to +55°C
• Humidity Tolerance: ≤ 90% RH (non-condensing)

Applications:

• Home Power Backup: Ensures continuity during phase drop or failure
• Shops & Offices: Maintains stable supply for sensitive equipment
• Industrial Machines: Reduces downtime due to unbalanced phases
• Generators & Panels: Integrates with smart changeover systems
